SPEED UTV Quick Release Seat Rails

Description

SPEED UTV Quick Release Seat Rails

• If you buy our Quick Release Seat Rails: You must also use our BRP Seat Braces for installation. (They are not compatible with the stock seat sliders.)

• If you buy only our BRP Seat Braces: They are compatible with both the stock sliders and our Quick Release Rails.

Our Seat Rails make it quick and easy to remove your seats. By simply pulling four detent pins you can have your seat out of your car in moments. There are multiple holes in the seat rails that will offer you various adjustments to the position of your seat. We CNC machine our Seat Rails out of aircraft aluminum and hard anodize them to provide a durable finish.

The combination of our seat rails with our seat braces will give you the ultimate strength and adjust-ability. Our Seat Braces will bolt directly to our seat rails. They offer three different height adjustments. These seat braces also give you the option to adjust the height of the front or rear of the seat to your desired position.

A common complaint with the Speed OEM seats is their flimsy and flexy feel. This does not hold the driver or passenger securely.

Our Seat Braces are the perfect solution to remedy this issue. Our seat braces give these seats the much-needed support. They provide reinforcement to hold the driver in a solid seating position.

Three different height adjustments (.500″, 1.00″ & 1.50″ higher) with independent adjust-ability to the front or rear of the seat.

Seat Rail Length:

(Measuring from the rear rubber bushing to the center of the rail bolt hole)

• All 4 door cars (both driver and passenger side) and 2 door (driver side) should be 11.75″ (see image 6 for reference)
  • the stock rail length from end to end is about 12.25″
• All 2 door cars (passenger side) should be 13″
  • the stock rail length from end to end is about 13.5″
  • (it seems to make no sense why they made these rails and mounting tabs longer than the other cars)

BRP Speed UTV Seat Rails Include:

• 2) Seat Rails (Fits one seat)
• 2) Seat Blocks
• 4) Quick Release Detent Pins
• 4) M8 x 20 x 13mm Hex Head Bolts
• 4) M8 Thin Flat Washers
• 4) M8 Nylock Nuts
• 2) M8 x 35 Allen Bolts
• 2) 14mm x 35mm Flat Washers

( BRP Seat Braces are Sold Separately & Required for these Seat Rails )

Seat Brace – Standard or Wide seat fitment:

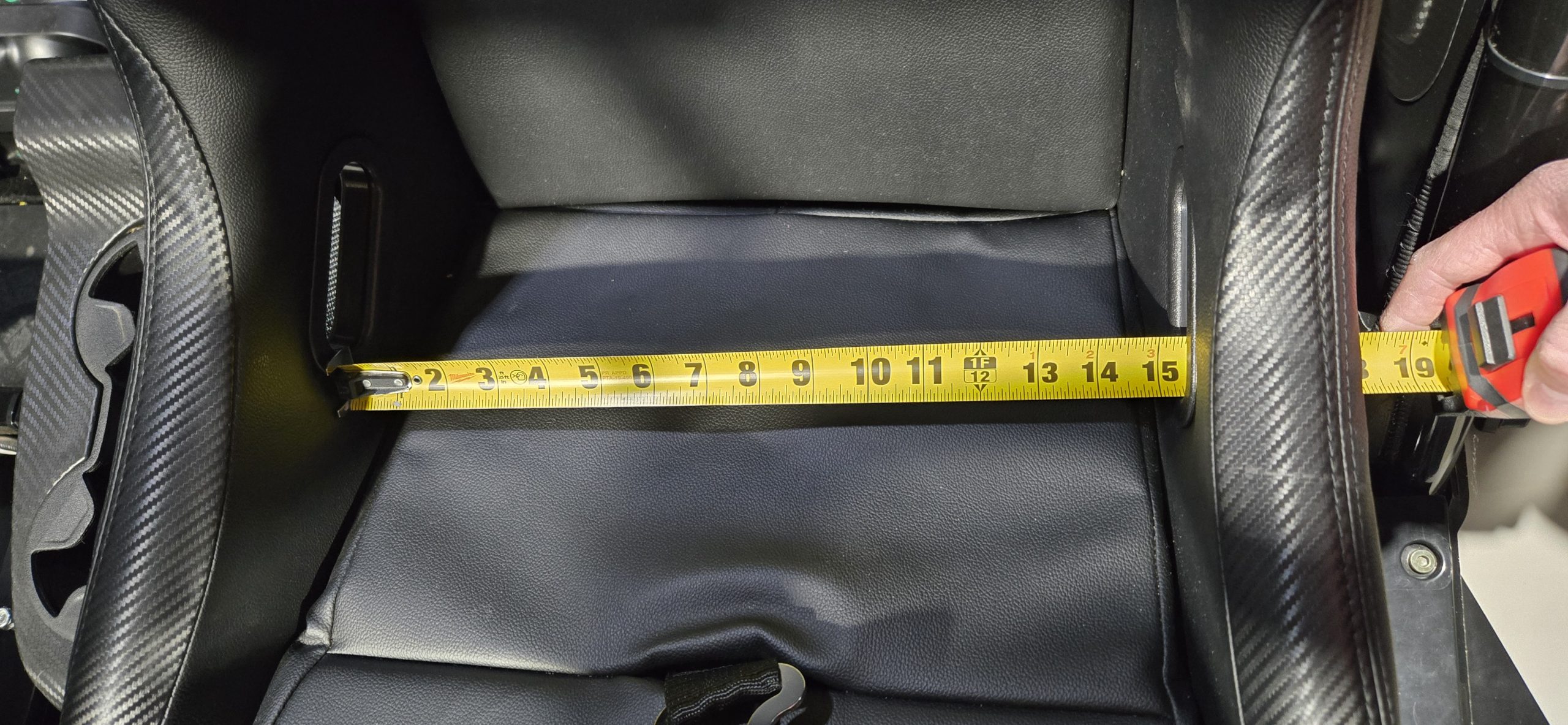

• The STANDARD seats are 15 1/4 inches across when measuring the inside of the seat-belt holes (See image 7 for reference)

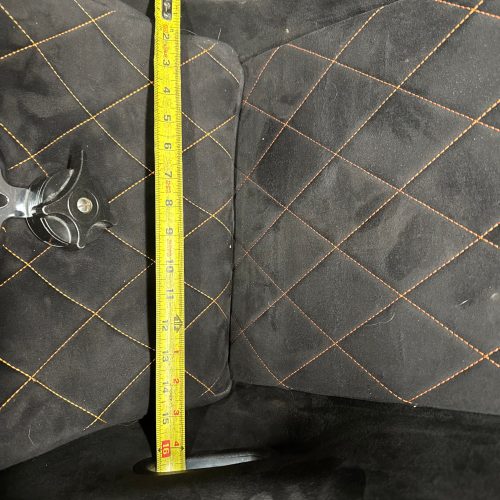

• The WIDE (and wide tall) seats are 16 1/4 inches across when measuring the inside of the seat-belt holes (See image 8 for reference)
