BRP Adjustable SUB Mount SMA-1060411

Description

BRP Adjustable SUB Mount SMA-1060411

This SUB Mount allows you to run the bars in two positions: 10mm or 20mm in front of steering stem. Stock Bar position is 14mm in front of steering stem. Handlebar height is raised by 25mm. If you wish to keep your bars at the stock height we recommend using a Pro-Taper Steering Damper Low Bars.

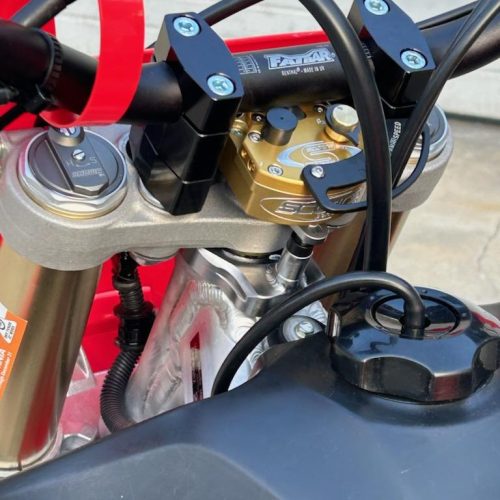

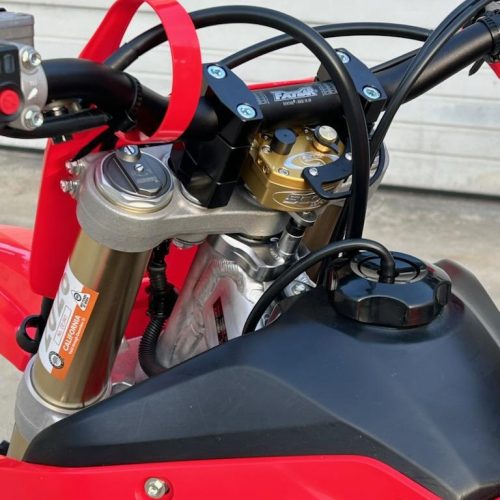

The BRP SUB “Scotts Under Bar” Mount is the latest in stabilizer mounting options and is a very popular setup for GP’s, motocross, off road, dual sport and riders of taller stature. Our SUB Mount is designed to run 1 1/8″ ProTaper style handlebar and mount a Scotts stabilizer below the handlebar replacing the bar mount assembly on your OEM, BRP or Scotts triple clamp.

The SUB Mount setup offers several benefits over a conventional “above bar” stabilizer setup.

• Reduced risk of injury by coming into contact with stabilizer
• Approximately 1″ taller bar position on most models
• Enables you to run a bar pad for 1 more level of protection

BRP Adjustable SUB Mount SMA-1060411 kit includes:

• SUB Mount SMO-1060411
• (2) Reversible Lower Bar Perches (10mm or 20mm in front of steering stem)
• All necessary hardware
  • (2) M12x75 Studs
  • (2) M10x30 SHCS
  • (4) M8x30 SHCS

We recommend using a Clean Speed Cable Guide to ensure proper cable routing.

This reuses the OEM Honda Rubber Cones, but we have replacements available here as well.

BRP is an authorized Scotts Stabilizer Dealer and Service center with an extensive knowledge of stabilizer mounting applications. We have a complete line of stabilizer mounting applications and replacement parts. When it comes to service we offer complete service on all Scotts stabilizers.

SPECIAL NOTES:

• When running a Scotts stabilizer in the SUB Mount configuration the arm will need to be reversed mounted.
• Using a lower bend bar can often emulate the stock bar height.
• Due to the SUB Mounts increased height, triple clamp style enduro handguard mounts will not work with many bar bends so we recommend running BRP BMI-9254 Hand Guard Mounts.
